tonymgarner Posted September 26, 2016 Report Share Posted September 26, 2016 Hi I am trying to get a solar panel for my bait boat (lake reaper). The manufacturers don't sell one but I have looked at the foldable one for a procat (??) at £150. I can buy 2 x 10w/12v panels from ebay at £40 in total and hinge them together (a couple of quid from B&Q). What I need is some views/assistance on the how to "chain" them together electrically....... does 2x10w = a 20w charge and 24v?? How do I solder them etc Any help greatly appreciated!! Quote Link to comment Share on other sites More sharing options...
InteraX Posted September 26, 2016 Report Share Posted September 26, 2016 If you get 2× 10w 12v and need to get 24v, you need to wire the 2 panels in series. There should be a black (-ve) and red (+ve) wire. The black on one panel needs to be connected to the red on the other. The other 2 leads should give you 24v at 20w. Quote Link to comment Share on other sites More sharing options...

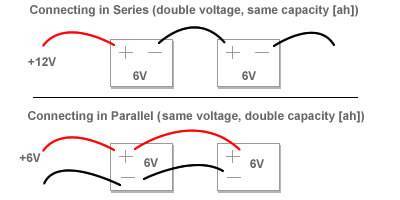

snoozer Posted September 27, 2016 Report Share Posted September 27, 2016 Quote Link to comment Share on other sites More sharing options...
